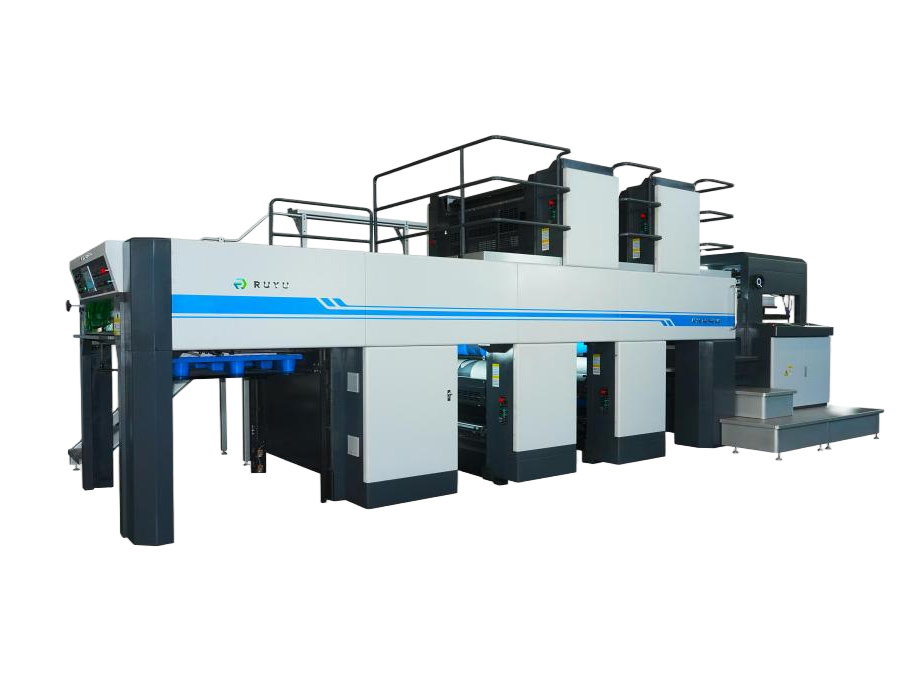

RYS10402D High-speed large double-sided double-color offset printing press

RUYU RYS10402D is a high performance, large format double sided two color offset printing press designed for high efficiency, high quality commercial and packaging printing. With a maximum printing speed of 15000 sheets per hour, it combines stable operation, precise registration, and durable structure to meet the demands of high volume printing production.

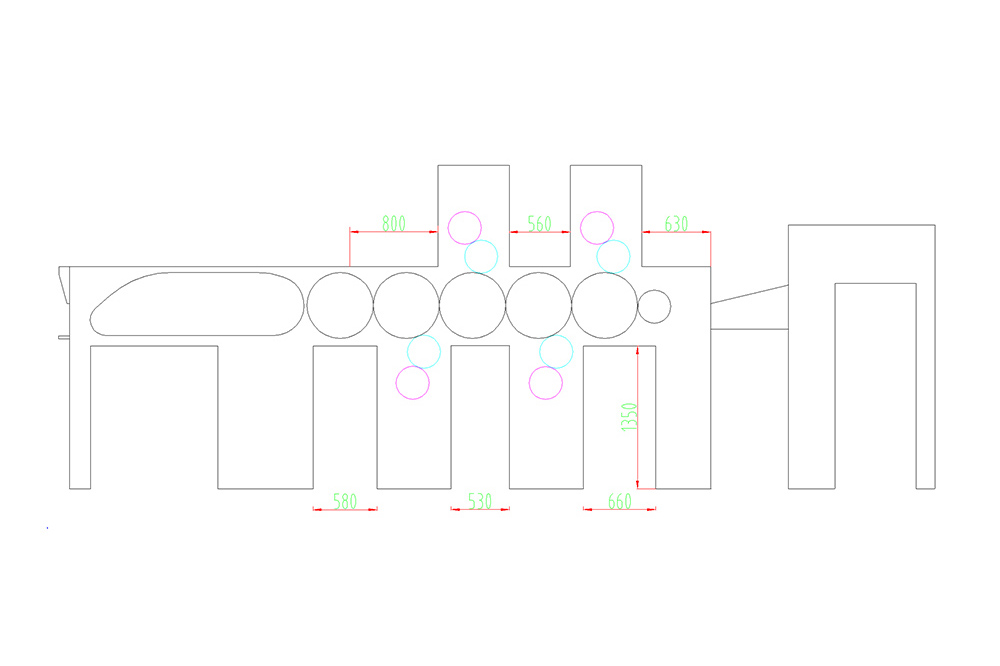

Structure Schematic

The press features a compact and rigid mechanical structure, with optimized cylinder layout and transmission system for smooth highspeed operation. The structure schematic clearly shows the paper feeding, printing, and delivery modules, ensuring easy operation and maintenance.

Product Features

1.High Strength Cylinder System

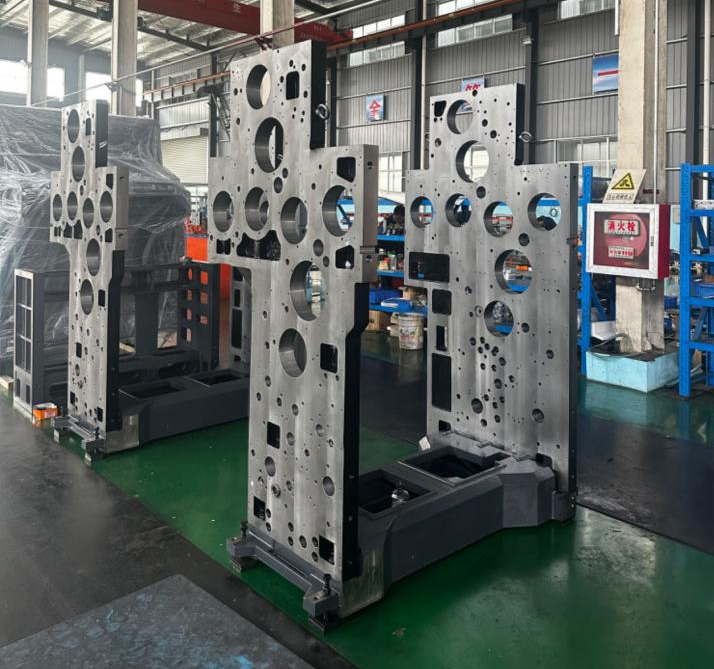

The cylinder body is made of high quality nodular cast iron for excellent rigidity and stability. Each impression cylinder undergoes professional anti corrosion treatment and supersonic steel spraying, ensuring wear resistance, long service life, and consistent printing pressure.

2.Efficient Paper Handling
Equipped with a high speed paper separating head supporting up to 18000 sheets per hour, the press delivers stable, accurate, and high speed paper feeding, reducing paper waste and improving production efficiency.

3.Premium Imported Components
The machine uses a full range of top brand imported key components, guaranteeing long term reliability, low failure rate, and stable performance under continuous high load operation.

4.Flexible Printing Configuration
The optional ink path clutch system supports fast mode switching: 2+2, 2+1, 1+1, 2+0. It provides a wide operating space and enhanced operational safety.

5.Reliable Electric Control System
The press adopts the SIEMENS electric control system for precise, stable, and responsive control. Built on decades of multi color offset press manufacturing and assembly experience, the machine offers outstanding reliability and long service life.

QIZHI Membrane Panel GMAW Production Line 20 torches

Main Technical Parameters

Main Specifications	RYS10402D
Maximum Paper Size（mm）	720×1040
Minimum Paper Size（mm）	393×546
Maximum Printing Area（mm）	710×1040
Paper Thickness（mm）	0.04-0.3
Plate Size（mm）	1050×800x0.28
Backing paper（mm）	1045×770x0.65
Blanket Size（mm）	1050×930x1.95
Axial Plate Adjustment Range（mm）	-2.5~+2.5
Circumferential Plate Adjustment Range（mm）	-0.8~+0.8
Diagonal Plate Adjustment Range（mm）	-0.3~+0.3
Machine Dimensions（mm）	7880×3800×3150
Paper Feeder Height（mm）	1500
Delivery Table Height（mm）	1200
Main Motor Power（kw）	30
Machine Total Power（kw）	45
Maximum Printing Speed（r.p.h）	15000
Machine Weight（T）	28.5
